Carbon Steel Pozi Drive Flat Head Particle Board Screws for Wooden

Brand Name : VDL

Model Number : CCS1001

Certification : ISO 9001

Place of Origin : China

MOQ : Negotiation

Price : Negotiation

Payment Terms : L/C, T/T, Western Union , Paypal

Supply Ability : 500, 000 pcs per month

Delivery Time : 30 days

Packaging Details : 100 pcs each bag , 10 bags each carton , 20 X 15 X 15 cm , 1000 cartons to a 20 ft container

Material : Carbon Steel and Stainless

Drive : Pozi

Head : Flat

Point : Sharp

Finish : Zinc 、Polishing 、Passivated 、Paint

Standard : ISO

Contact Now

Carbon Steel Pozi Drive Flat Head Particle Board Screws for Wooden

Manufacturing size from 2.0 to 6.0 and max length is up to 150 mm , particle board screws is also known as chipboard screws , countersunk head with pozi drive for phillips screwdriver bits .

Particle board screws with wider pitch and 40 degree blank angle for threads and thread point is up to 25 degree , these features allow particle board screws many advantages

▲ Cutting fast with less power

▲ High tensile strength

▲ Good torsional Strength

▲ Secure tightly

Specification

Thread diameter : 4.5

Full length : 45

Pitch : 2

Head diameter : 9

More specifications for additional choices

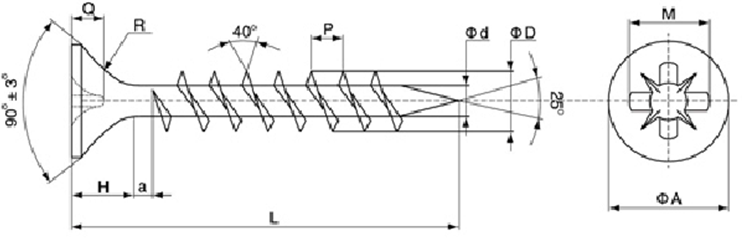

Carbon Steel Pozi Drive Flat Head Particle Board Screws for Wooden

D	2.5	3	3.5	4	4.5	5	6
H	1.4	1.8	2	2.35	2.55	2.85	3.35
A	5	6	7	8	9	10	12
P	1.1	1.35	1.6	1.8	2	2.2	2.6

Material

Particle board screws are normally made of carbon steel harden material like 1010 , 1018 , 1022 , and sometimes stainless steel SUS 201 , SUS 304 are available .

Chemical elements

C	Si	Mn	S	P	Cu	Cr	Ni	Alt
0.16	0.04	0.66	0.007	0.02	NA	NA	NA	0.028

Physical performance

Elongation A ( % )	33.5
Reduction of areaZ ( % )	62
Density g/cm^3	7.85
Tensile strength(σb/MPa	539

Note : Above data based on 1018 steel particle board screws

Applications

Particle board screws are used to wooden parts and plastic items .

Besides particle board screws , we are also manufacturing machine screws ,self tapping screw ,self drilling screws ,plastic screws etc .
